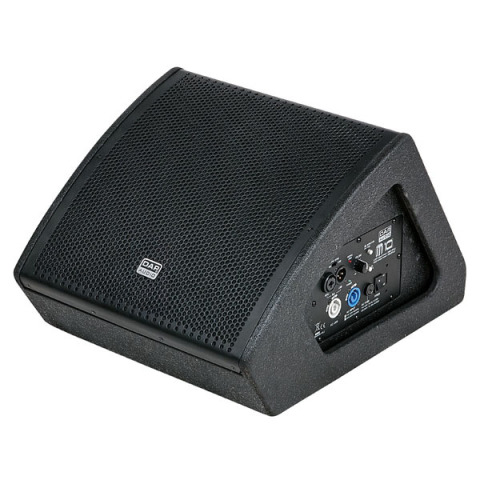

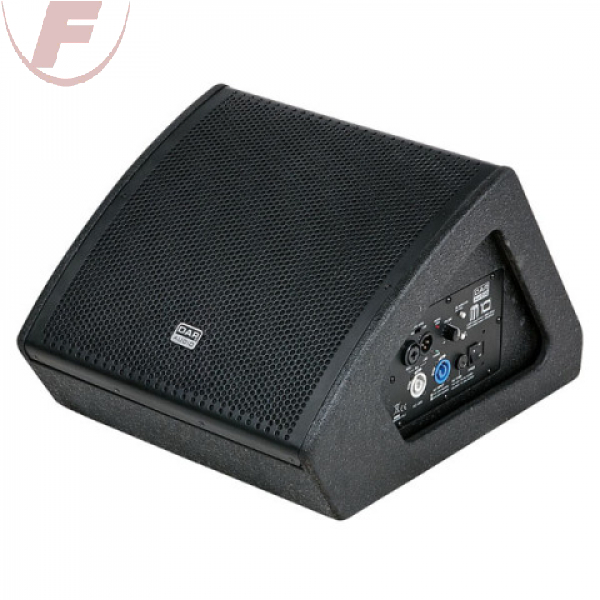

Aktivmonitor 10" DAP M 10
Die aktiven Bi-Amp M-Serie Monitor-Lautsprecher sind die Lösung zur optimalen Überwachung auf der Bühne.
Ein kompaktes, leichtes und innovative Design-Gehäuse, kombiniert mit einem leistungsstarken Verstärker der Klasse D, mit High-End-Komponenten und gutem elektronischen Schutz. Ein Plug & Play-Lautsprecher für alle anspruchsvollen Musiker. Das 60 ° Keil Design und der Koaxial-Lautsprecher sorgen für eine transparente und direkten "in your face" Klang.
Integrierte Griffe schützen die Verbindungen
The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring.
A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct ‘in your face' sound with consistent coverage.
Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.
Specifications
System: Active Bi-Amp 10" Monitor
Output Power: Class D, 350W LF power, 65W HF power
Maximum SPL @1M: 123dB/ 126dB Peak
Frequency resp. (-10dB): 70Hz - 20kHz
Transducer Low: 10" Woofer, 2,56" Voice Coil
Transducer High: 1" Neodymium Compression Driver,
1" Voice Coil
Nom Dispersion (HxV): 70° x 70° (-6dB)
Audio Input: XLR/ Jack Combo balanced
Link Output: XLR-male balanced

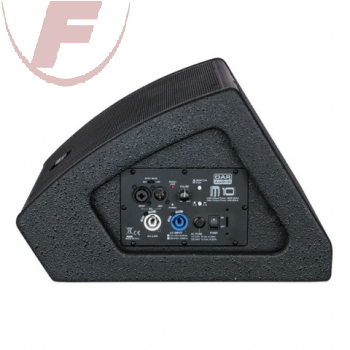

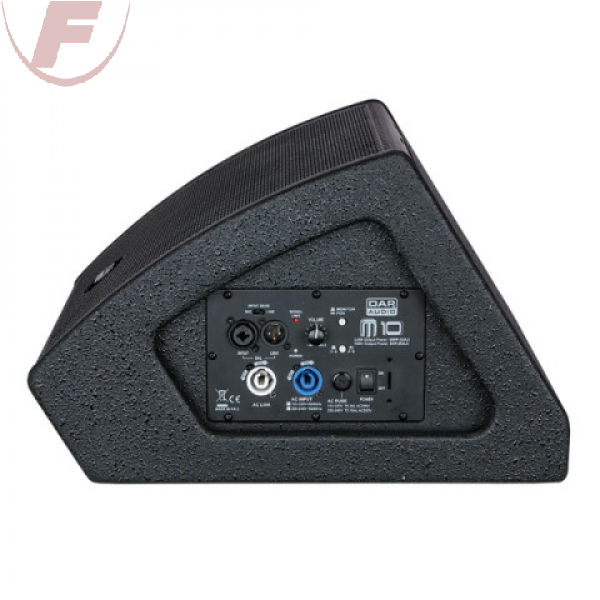

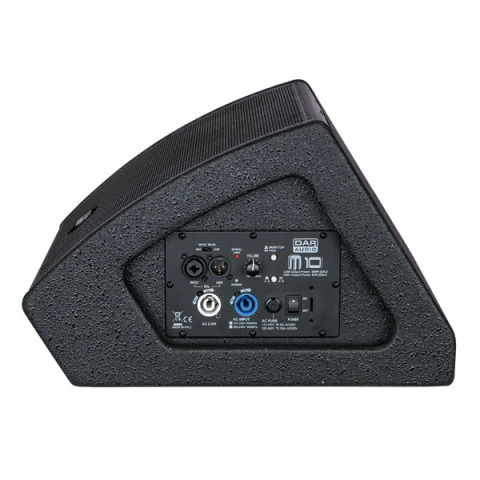

External Controls: Mic/Line switch, EQ Preset switch (Monitor/FOH),
Ground Lift switch, Volume control,
Signal-Limiter indication LED,
Power Switch with green LED
Electronic Protection: Thermal/ Overload/ Limiter/ Compressor

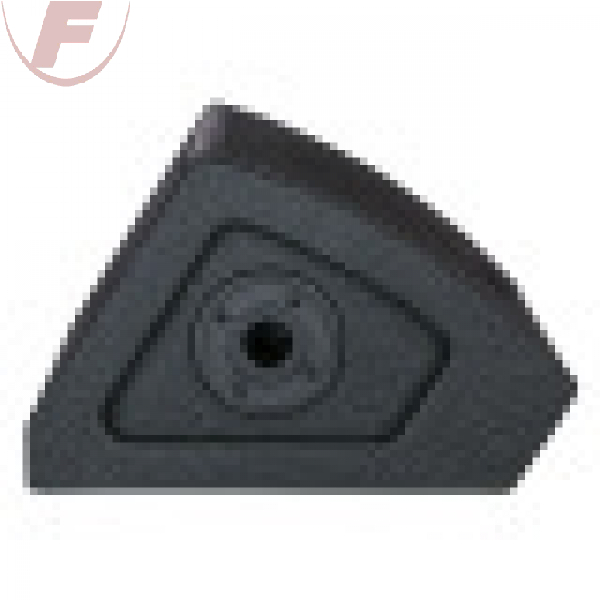

Mounting: Floor and Integrated 35mm Pole Socket
Power Supply: AC 100V~240V, 50 Hz/60Hz (SPSU)
Power Input: Neutrik Powercon
Housing: Wedge design 15 mm MDF with
Scratch Resistant Black Paint
Dimensions (HxWxD): 363 x 351 x 323 mm
Net Weight: 11,4 kg
Herstellerartikelnummer: D3660
